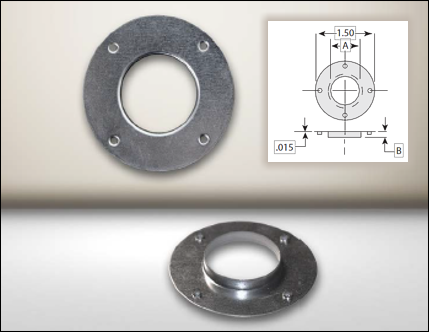

1.5" Tinplate Inserts / Bushings
| PART NO. | CENTER HOLE DIAMETER - A | HUB HEIGHT - B | WEIGHT PER 1,000 pcs. |
|---|---|---|---|
| A-1 | .505 - .509 | .060 - .070 | 6.9 lbs. |
| A-1H | .505 - .509 | .040 - .050 | 6.9 lbs. |
| A-2 | .630 - .633 | .060 - .070 | 6.5 lbs. |
| A-2C | .630 - .633 | .110 - .120 | 6.5 lbs. |
| A-3 | .755 - .758 | .060 - .070 | 6.5 lbs. |
| B-1 | .883 - .885 | .115 - .125 | 6.5 lbs. |
| B-1C | .883 - .885 | .154 - .164 | 6.5 lbs. |
| B-2 | .883 - .885 | .168 - .188 | 6.5 lbs. |
| B-3 | .883 - .885 | .220 - .250 | 6.5 lbs. |
| BA-1 | .883 - .885 | .053 - .063 | 5.1 lbs. |
| BA-6 | 1.005 - 1.009 | .085 - .095 | 5.5 lbs. |
| BA-7 | 1.005 - 1.009 | .115 - .125 | 5.5 lbs. |
Application:
Used For Depressed Center Wheels, Cut-Off Wheels, Grinding Wheels and Flap Discs
- Parts are concentric within .010 with < .005 burr
- Special build-to-order sizes are available on request.
- Four 1/8" diameter equally spaced rough extruded nail holes on 1.187 bolt circle.
- (BA-6 & BA-7) Four 3/32" diameter equally spaced rough extruded nail holes on 1.187 bolt circle.
- All 1.5 inch A and B Series Inserts are made of .015 thick Soft Temper Steel with Electrolytic Tinplate Finish.
Supplying Quality Components used in the Manufacture of Abrasive Wheels.
